XB-S800-80/100
鉸鏈?zhǔn)娇蚣茕?/span>

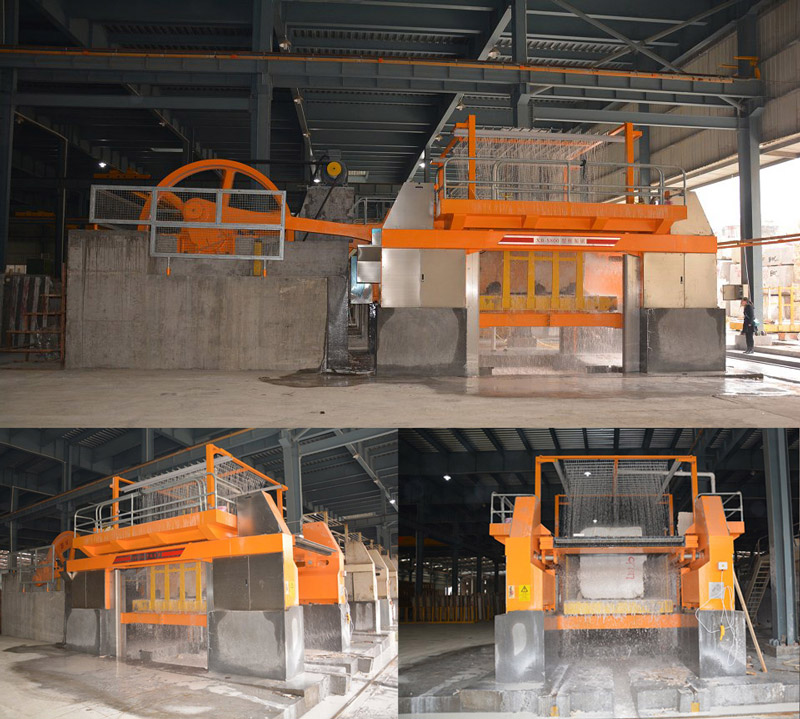

Gang Saw for Marble (Hinge typs)
產品介紹 PRODUCT INTRODUCTION
采用先進的鉸鏈?zhǔn)骄€性導向結構,加強的雙連桿設計,主馬達液壓軟啟動裝置,以及高效的切割控件系統等先進的技術。與同類拍鋸相比,該機有更快的切割效率,更好的切割精度,節省更多電能,性能更穩定可靠。
Adopt adcanced techonlogy such as hinge type linear guide structure,more strength double cinnocting rod design,the main motor hydraulic soft start decive,and high efficiency cutting control systrn. Compared with the other market gang saws, the cachine has faster cutting efficiency,better cutting percision,sacing moer energy,moer stable and reliable perfoemance.
型號 | 單位 | XB-S800-80 | AB-S800-100 |
最大切割尺寸(長x寬x高) | mm | 3200x2000x2050 | 3200x2500x2050 |
最多可裝鋸片 | PCS | ≤80 | ≤100 |
鋸框沖程 | mm | 800 | 800 |
最大鋸切進給速度 | mm/h | 50-1000 | 50-1000 |
鋸條長度 | mm | 4400(or 4350)x(≥1..5) | 4400(or 4350) x(≥1..5) |
主電機功率 | kw | 110 | 132 |
進給電機功率 | kw | 7.5 | 7.5 |
荒料車功率 | kw | 1.5 | 1.5 |
耗水量 | m3/h | 80 | 100 |
外形尺寸(長寬高) | mm | 12425x4700x3800 | 12425x5200x3800x |
機械總重量 | Ton | 55 | 57.5 |
