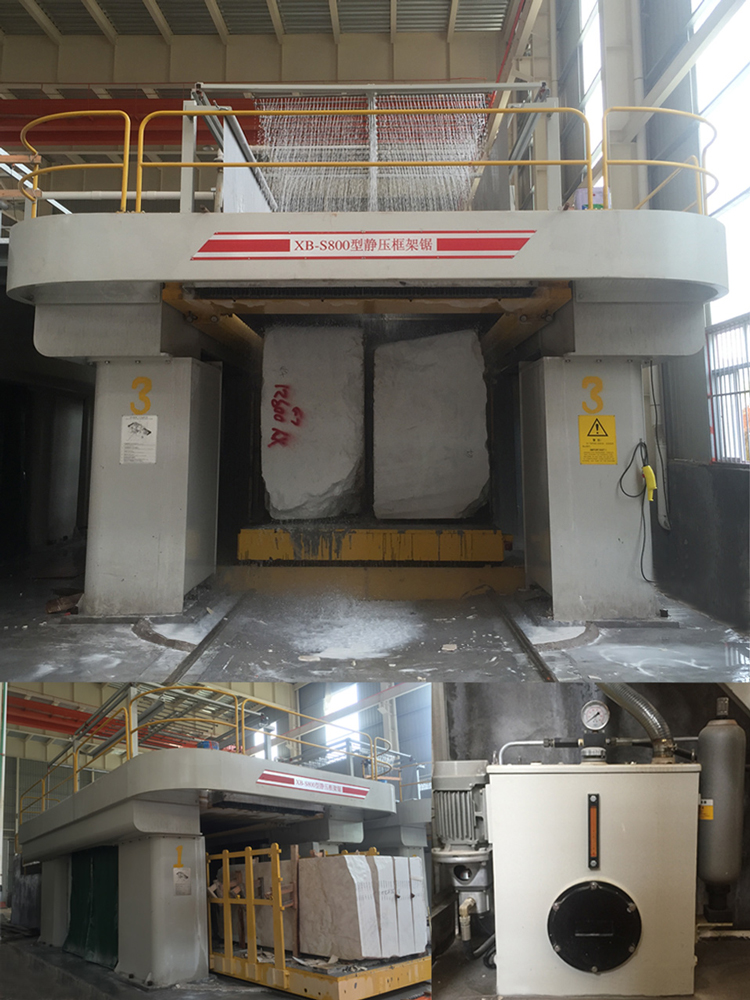

XB-S800-80/100

靜壓框架鋸

Hydrostatic Slide gang saw

產品介紹 PRODUCT INTRODUCTION

這是一種新型的框架排鋸,鋸框固定在四個靜壓導軌上。采用先進的靜壓油膜技術和雙連桿結構,鋸框移動平穩、順暢、阻力小。與其他排鋸相比,具有顯著的優點:

1、更小的運行阻力,更快的切割速度;

2、更高的切割精度和平整度,節約石材,節省拋磨的成本;

3、更小的啟動電流,更省電;

4、更低噪音;

5、易操作和維護。

This is a new type frame gang saw which saw frame fixed on the four hydrostatic slide guideway.Due to using advanced technology of hydeostatic oil film and double conneting rods,the saw frame move more smoothly and rasity.Comparting with other gang saw,the special advantages are as follows:

1.Get berrer cutting efficiency and,save stone and easily polish;

2.More faster cutting speed;

3.Save more power,smaller start-up current;

4.More lower noise;

5.Easily operate and maintain.

型號

Model NO.

單位Unit

XB-S800-80

XB-S800-100

最大切割尺寸(長寬高)

Max.cutting block size(L x W x H)

mm

3300x2000x2100

3300x2500x2100

最多可裝鋸片

Max balde No.

pair

80

100

鋸框沖程

Working stroke of blade

mm

800

800

最大鋸切進給速度

Cutting speed

mm/h

50-1000(artificial marble)

0-500(natural marble)

50-1000(artificial marble)

0-500(natural marble)

鋸條長度

Blades length

kw

4400(or 4350)x(≥1.5)

4400(or 4350)x(≥1.5)

主機電功率

Main motor power

kw

110

132

進給電機功率

Auxiliary motor power

kw

7.5

7.5

油泵電機功率

Pump motor powe

kw

3

3

荒料車功率

Trolley motor powe

kw

1.5

1.5

耗水量

Water consumption

m3/h

80

100

總裝機功率

Total power

kw

122

144

外形尺寸(長寬高)

Dimension(L x W x H)

m

13.5x5.15x5.1

13.5x5.65x5.1

機械總重量

Weight

ton

65

70
